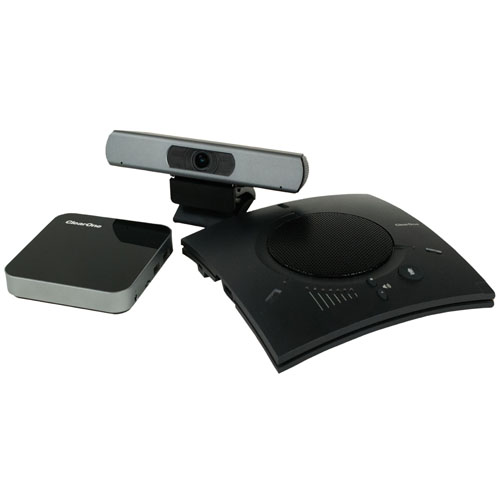

Clearone Collaborate Live 200

A video collaboration system that captures an ultra wide-angle view for huddle spaces and small meeting rooms.

Product Description

COLLABORATE LIVE 200

  • COLLABORATE Live 200 codec appliance
  • UNITE 50 EPTZ HD camera
  • CHAT 150 speakerphone
  • Power supplies, cables and accessories
  • COLLABORATE Space application (90 days)
  • One-year support and maintenance with warranty

COLLABORATE LIVE 200 CODEC APPLIANCE

  • Video input: 1x USB 3.0
  • Video output: 1x HDMI, 1x Display port
  • Audio input: USB (Digital audio)
  • Audio output: USB, S/PDIF
  • USB: 4x USB 3.0

UNITE 50 HD CAMERA

  • 120 ultra wide-angle field view with EPTZ support
  • Full auto-focus, limited-distortion lens
  • Low-light 2D and 3D algorithm
  • Image SNR as high as 55dB

CHAT 150 SPEAKERPHONE

  • ClearOne HDConference audio processing
  • Three built-in microphone array with 360 pickup
  • Large loudspeaker with Max Output Level: 85 dB SPL
    @ 1 meter
  • Wideband audio frequency response (20Hz-20kHz)

VIDEO CHARACTERISTICS

  • Resolution up to 1080p @ 30 fps (Rx)
  • H.261, H.263, H.263+/++
  • H.264/AVC High Profile up to 6Mbps
  • H.264/SVC (Skype for Business)

AUDIO STANDARDS

  • 20KHz: AAC-LD
  • 14KHz: G.722.1 Annex C
  • 7KHz: G.722, G.722.1
  • 3.4KHz: G.711, G.723.1, G.728. G.729. AMR (3G)

DATA CHARACTERISTICS

  • H.239 support for data sharing
  • Resolution up to 1080p
  • Data inputs via wireless, datapoint (HDMI-to-USB
    adapter)

CONTROL

  • Web-based management and control
  • Telnet API for 3rd-party control
