CONNECT 400V

A video collaboration solution that is suitable for medium to large meeting rooms.





Product Description

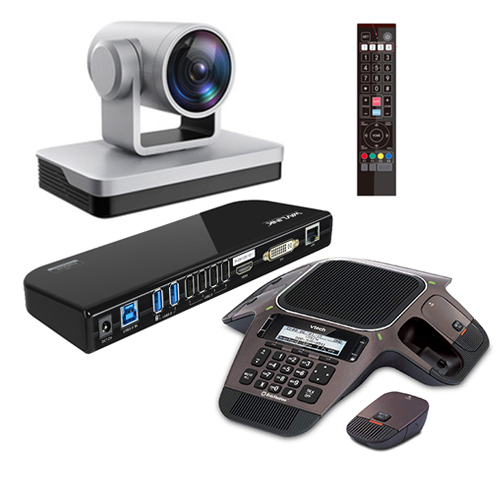

CONNECT 400V package includes:

  • WAVLINK USB HUB with 3M USB3.0 cable for laptop.
  • UV430A 4K 60FPS UHD PTZ camera. With 5M extender cable.
  • VCS754ASIP Speakerphone with 4 Wireless Mics, 2 Fixed Mics and 1 Loudspeaker
  • Two years with warranty for hub, camera and speakerphone.



WAVLINK USB HUB

  • Provides SuperSpeed USB 3.0 (5 Gbps) link between computer to video, audio, network, and two additional USB 3.0 ports.
  • Compatible with Windows 10, 8.1, 8, 7, Vista, and mac OS 10.2 or above.
  • Backwards compatible with USB 2.0 (480Mbps) for both the PC and attached devices.
  • HDMI and DVI/VGA ports for two external monitors supports display resolutions up to 2560*1440 (single HDMI) and DVI / VGA to 2048*1152 / 1920*1200.
  • Network port offers wired 10/100/1000 Gigabit Ethernet connectivity. Graphics, audio, and networking all managed by single DisplayLink DL-3900 chipset.
  • Stereo audio in/out with hotplug detection.



UV430A 4K 60FPS UHD PTZ CAMERA

  • 4K Ultra HD Image: Built with SONY high quality CMOS sensor, with resolution up to 4K@60fps.
  • 12x optical zoom lens, with 80.4-degree FOV without distortion.
  • Fast, accurate and stable auto focus is achieved with leading auto focus algorithm.
  • Super high SNR image is achieved with low noise CMOS. The adoption of advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
  • With video 4k output from HIMI, USB3.0 and LAN at the same time.
  • Support H.264/H.265 video compression over LAN, support MJPG, H.264, YUY2 and NV12 over USB3.0 port , support AAC, MP3 and G.711A audio compression over A-in port.



VCS754ASIP Speakerphone with 4 Wireless Mics, 2 Fixed Mics and 1 Loudspeaker

  • Automatic gain control
  • Comfort noise injection
  • Digital mixing
  • Enhanced noise reduction/Dynamic noise reduction (DNR)
  • Fast adaptive feedback control
  • Volume control: 10 levels
  • Full-duplex speakerphone
  • Acoustic echo cancellation technology



WAVLINK USB HUB

Download PDF



UV430A 4K 60FPS UHD PTZ camera

Download PDF



VCS754ASIP Speakerphone with 4 Wireless Mics, 2 Fixed Mics and 1 Loudspeaker

Download PDF
