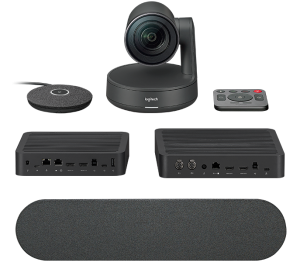

Logitech Rally Ultra HD PTZ ConferenceCam for Meeting Rooms

Product Description

Logitech Rally delivers studio-quality video, unmatched voice clarity, and RightSenseautomation for better meetings with video conferencing applications that work with USB devices, including Google Hangouts Meet, Microsoft Skypefor Business, Microsoft Teams, and Zoom. With modular audio, thoughtful cable management and premium finishes, Rally integrates beautifully into medium and larger rooms.

RALLY CAMERA

  • Ultra-HD imaging system supports:
    • 4 K, 1440 p, 1080 p, 900 p, 720 p, and SD at 30 fps
    • 1080 p, 720 p at 30 fps and 60 fps
  • Smooth motorized pan, tilt and zoom
  • Pan: 90
  • Tilt: +50 / -90
  • 15x HD zoom
  • Field of View:
    • Diagonal: 90
    • Horizontal: 82.1
    • Vertical: 52.2
  • Autofocus
  • 3 camera presets
  • Kensington security slot
  • Video mute/unmute LED indicator
  • Standard tripod thread
  • Lens parks at -90 in sleep mode for assured privacy

RALLY MIC POD

  • Pickup range: 4.5 m diameter
  • Four omnidirectional microphones forming eight acoustic beams
  • AEC (Acoustic Echo Cancellation)
  • VAD (Voice Activity Detector)
  • Background noise suppression
  • Mute button with LED status indicator
  • Captive 2.95 m 12-pin cable
  • Daisy chain up to 7 Rally Mic Pods
  • Frequency response: 90 Hz 16 kHz
  • Sensitivity: >-27 dB +/-1 dB @ 1 Pa
  • Microphone data rate: 48 kHz
  • Recommended # of participants: Rally (one Mic Pod): 10, Additional participants per Mic Pod: 6
  • Recommended participants for Rally with 7 Mic Pods: 46

RALLY SPEAKER

  • High-performance 76 mm driver with rare-earth magnet
  • Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
  • Mini XLR cable connects to Rally Display Hub for both signal and power
  • Speaker volume 95 dB SPL @1 W, 100 dB SPL @7.5 W, both +/-2 dB at meter
  • Sensitivity: 95+/-2 dB SPL at meter
  • Distortion: 200 Hz300 Hz < 2.5%, 300 Hz10 kHz < 1%@7.5 W
  • Speaker sampling rate: 48 kHz

RALLY TABLE HUB

  • Single CAT6A cable connection to Rally Display Hub ( 5 m cable included, supports customer-supplied cables up to 50 m)
  • Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms
  • 12 Pin connector for Rally Mic Pod
  • HDMI Type A passthrough to Display Hub (x2)
  • USB Type C
  • USB Type A (reserved for future capability)
  • USB Type B (connects to meeting room computer)
  • RJ45 (reserved for future capability)
  • Power input

RALLY DISPLAY HUB

  • HDMI Type A (x2) (connects to displays)
  • USB C (connects to Rally Camera)
  • USB Type B (connects to meeting room computer)
  • RJ45 (connects to Table Hub)
  • Mini XLR (x2)
  • Powers one or two Rally Speakers
  • Power input

REMOTE CONTROL

  • RF remote control (line of sight not required)
  • CR2032 batteries (included)

CABLES / POWER

  • Camera to Display Hub
    2 m USB 3.1 Type C to USB Type C 3.1
  • Conference Room Computer to Display or Table Hub
    2 m USB 3.1 Type A to USB Type B
  • Display Hub to Table Hub
    5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m
  • Display Hub to Speaker (x2)
    2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m
  • Conference Room Computer to Displays (x2)
    2 m HDMI A
  • Mic Pod
    2.95 m: Hardwired with 12 pin connector
  • Power Outlets to Power Supplies (x2)
    1 m
  • Power Supplies to Table Hub / Display Hub (x2)
    1.5 m

AVAILABLE ACCESSORIES

  • RALLY MOUNTING KIT
    Rally Mounting Kit with cable retainers (x2) and mounting brackets for camera, speakers (x2), and hubs (x2)
  • RALLY MIC POD
    Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms
  • RALLY MIC POD HUB
    Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling
  • RALLY SPEAKER
    Add a second Rally Speaker for larger rooms

COMPATIBILITY AND CERTIFICATIONS

  • Plug-and-play USB connectivity
  • Certified for Skype for Business and ready for Teams
  • Zoom Certified
  • Fuze Certified
  • Certified for Google Hangouts Meet Hardware
  • Microsoft Cortanacertified
  • Cisco Jabberand WebEX Compatible
  • Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
