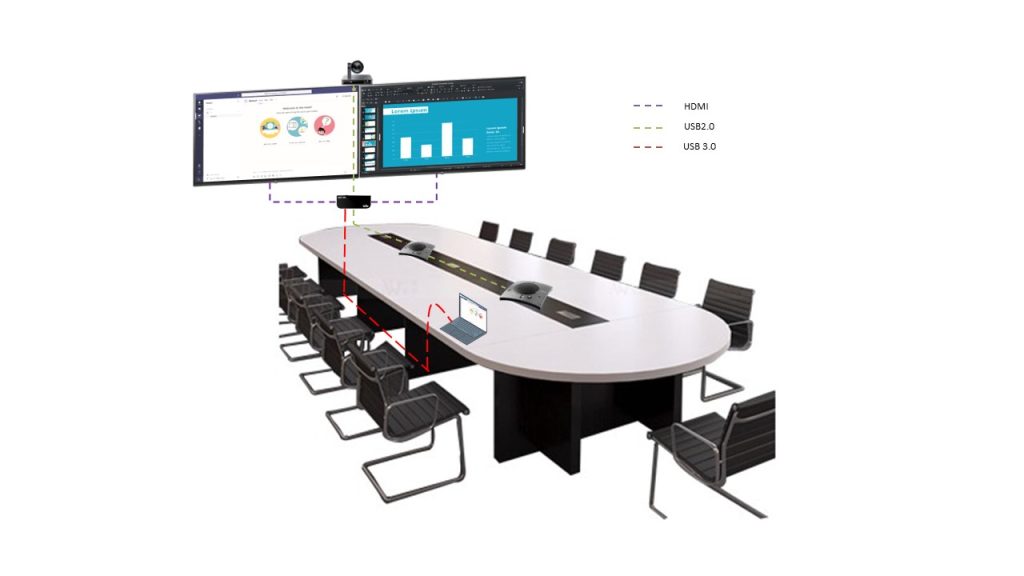

A video collaboration solution that is suitable for medium to large meeting rooms.
CONNECT 400CA package includes:
- WAVLINK USB HUB with 3M USB3.0 cable for laptop.
- UV430A 4K 60FPS UHD PTZ camera. With 5M extender cable.
- CHAT ATTACH 150 speakerphone
- Two years with warranty for hub, camera and speakerphone.
WAVLINK USB HUB
- Provides SuperSpeed USB 3.0 (5 Gbps) link between computer to video, audio, network, and two additional USB 3.0 ports.
- Compatible with Windows 10, 8.1, 8, 7, Vista, and mac OS 10.2 or above.
- Backwards compatible with USB 2.0 (480Mbps) for both the PC and attached devices.
- HDMI and DVI/VGA ports for two external monitors supports display resolutions up to 2560*1440 (single HDMI) and DVI / VGA to 2048*1152 / 1920*1200.
- Network port offers wired 10/100/1000 Gigabit Ethernet connectivity. Graphics, audio, and networking all managed by single DisplayLink DL-3900 chipset.
- Stereo audio in/out with hotplug detection.

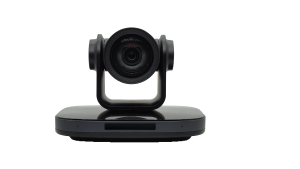

UV430A 4K 60FPS UHD PTZ CAMERA
- 4K Ultra HD Image: Built with SONY high quality CMOS sensor, with resolution up to 4K@60fps.
- 12x optical zoom lens, with 80.4 FOV without distortion.
- Fast, accurate and stable auto focus is achieved with leading auto focus algorithm.
- Super high SNR image is achieved with low noise CMOS. The adoption of advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
- With video 4k output from HIMI, USB3.0 and LAN at the same time.
- Support H.264/H.265 video compression over LAN, support MJPG, H.264, YUY2 and NV12 over USB3.0 port , support AAC, MP3 and G.711A audio compression over A-in port.

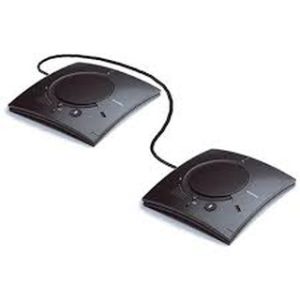

CHAT ATTACH 150 SPEAKERPHONE
- ClearOne HDConference audio processing
- Total 6 built-in microphones with 360 pickup
- Total 2 loudspeakers with Max Output Level: 85 dB SPL
@ 1 meter
- Wideband audio frequency response (20Hz-20kHz)
WAVLINK USB HUBDownload PDF
UV430A 4K 60FPS UHD PTZ cameraDownload PDF
CHAT ATTACH 150 SpeakerphoneDownload PDF
